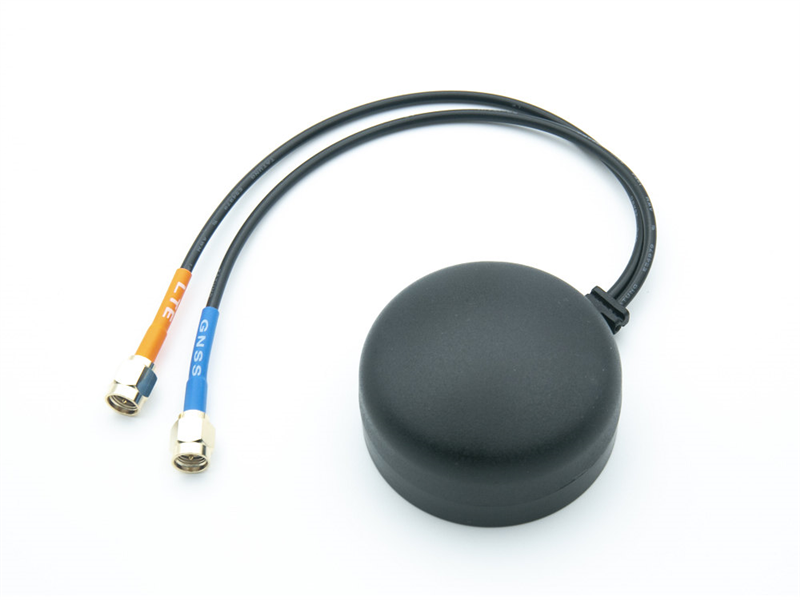

EA-14
Type：LTE&GPS+GNSS
Freqrency：GPS: 1575.42 MHz、GLONASS: 1602 MHz、4G/LTE: 824~960/1710~2170/2700 MHz
Impedance：50Ω
SIZE(mm)：Φ52mm
V.S.W.R.：GPS: 2.0:1
GSM: 2.0:1
Peak Gain (dB)：GPS: 30 dBi
GSM: 0~2 dBi
Freqrency：GPS: 1575.42 MHz、GLONASS: 1602 MHz、4G/LTE: 824~960/1710~2170/2700 MHz
Impedance：50Ω
SIZE(mm)：Φ52mm
V.S.W.R.：GPS: 2.0:1
GSM: 2.0:1
Peak Gain (dB)：GPS: 30 dBi
GSM: 0~2 dBi
